Fuse information

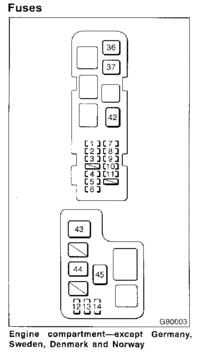

Fuses (type A)

1	AM2	30A	Starting system
2	HAZARD	10A	Emergency flashers
3	HORN	7.5A	Horns
4	RADIO No.1	20A	Car audio system
5	ECU-B	15A	Anti-lock brake system
6	DOME	10A	Interior lights, personal lights, luggage compartment light, trunk light, door courtesy lights, clock
7	HEAD (LH)	15A	Left-hand headlight
8	HEAD (RH)	15A	Right-hand headlight
9	SPARE	30A	Spare fuse
10	SPARE	20A	Spare fuse
11	SPARE	15A	Spare fuse
12	ALT-S	7.5A	Charging system
13	SRS WRN	7.5A	SRS airbag system
14	EFI	15A	Multiport fuel injection system
15	HEAD (LH) LO	15A	Left-hand headlight (low beam)
16	HEAD (RH) LO	15A	Right-hand headlight (low beam)
17	HEAD (LH) HI	15A	Left-hand headlight (high beam)
18	HEAD (RH) HI	15A	Right-hand headlight (high beam)
19	ECU-IG	15A	Anti-lock brake system
20	SEAT-HTR	20A	Seat heaters
21	PANEL	7.5A	Instrument panel lights
22	STOP	15A	Stop lights, multiport fuel injection system, anti-lock brake system
23	FOG	20A	Front fog lights, rear fog lights
24	CIG & RAD	15A	Cigarette lighter, digital clock display, car audio system, power rear view mirrors
25	IGN	7.5A	Charging system, discharge warning light, multiport fuel injection system
26	WIPER	20A	Windshield wipers and washer, rear window wiper and washer, headlight cleaner
27	MIR-HTR	10A	Outside rear view mirror defogger, multiport fuel injection system
28	TURN	10A	Turn signal lights, emergency flashers
29	TAIL	15A	Tail lights, parking lights, licence plate lights, front fog lights, rear fog lights, headlight beam level control system
30	HTR	10A	Air conditioning system, rear window defogger
31	GAUGE	10A	Gauges and meters, power door lock system
32	ST	7.5A	Starting system, multiport fuel injection system
33	TAIL-RH	10A	Right-hand tail light, parking lights, licence plate lights, front fog lamps, headlight beam level control system
34	TAIL-LH	10A	Left-hand tail light, gauges and meters, car audio system, clock, instrument panel lights
35	A/C	10A	Air conditioning system

Fuses (type B )

36	RDI	30A	Electric cooling fan
37	CDS	30A	Electric cooling fan
38	AM1	40A	Electronic ignition system
39	DOOR	30A	Power door lock system, convertible top control system
40	DEF	30A	Rear window and outside rear view mirror defoggers
41	POWER	30A	Power windows, electric moon roof

Fuses (type C)

42	HTR	40A	Air conditioning system
43	ALT	100A	Electric cooling fan, "ALT-S", "STOP", "FOG", "TAIL", "HTR", "AM1", "DOOR", "DEF" AND "POWER" fuses
44	MAIN	60A	Starting system, headlights, "AM2", "HAZARD", "HORN", "ECU-B", "DOME" AND "RADIO" fuses
45	ABS	50A	Anti-lock brake system

---
