G6 radio connections

From Wiki
Jump to: navigation, search
Plug Pin Connection Toyota Colour ISO Colour
A 1 SKR FR+ LIGHT GREEN GREY
A 2 SKR FL+ PINK WHITE
A 3 ACC GRAY RED
A 4 BATTERY BLUE/YELLOW YELLOW
A 5 SKR FR- BLUE GREY/BLACK
A 6 SKR FL- VIOLET WHITE/BLSCK
A 7 GROUND BROWN BLACK
A 8 ANT BLACK/RED BLUE
A 9 AMP PINK/BLUE
A 10 ILLUMINATION GREEN ORANGE


Plug Pin Connection Toyota Colour ISO Colour
B 1 SKR RR+ RED PURPLE
B 2 SKR RL+ BLACK GREEN
B 3 SKR RR- WHITE PURPLE/BLACK
B 6 SKR RL- YELLOW GREEN/BLACK

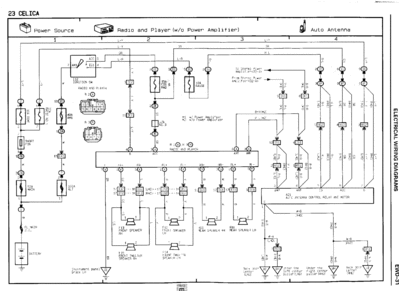

Wiring Diagram - Click to view
